Create an Organizational Forms Library in Exchange or Office 365

Slipstick Systems

› Exchange Server › Exchange 2013 › Create an Organizational Forms Library in Exchange or Office 365

Last reviewed on December 4, 2018     15 Comments

Applies to: Office 365 Exchange, Exchange 2013

September 30, 2013 by Diane Poremsky 15 Comments

Creating an Organizational Forms Library in Exchange 2013 or Office 365 Exchange Online is much easier than creating it in Exchange 2010: at most, you'll need to run three cmdlets to set up the Organizational Forms Library: one to create the Public Folder Mailbox (if a Public Folder Mailbox doesn't already exist), then create the new public folder and set the new folder's EformsLocaleID.

These are the two cmdlets you'll use to create the Organizational Forms Library.

New-PublicFolder -Path "\NON_IPM_SUBTREE\EFORMS REGISTRY" -Name "Organizational Forms Library"

Set-PublicFolder "\NON_IPM_SUBTREE\EFORMS REGISTRY\Organizational Forms Library" –EformsLocaleID EN-US

If you need to lookup the LocaleID, see languagecode Field at MSDN.

Once the library is published, you'll need to use Outlook 2010 to publish custom forms to it or use *.fdm files to publish; Outlook 2013 can use forms in the Org Forms library, but can't publish to it.

Instructions for Creating an Organizational Forms Library in Exchange 2010 and Create an Organizational Forms Library in Exchange 2007.

Step-by-step instructions

  1. Open PowerShell using Run as Administrator. Run the following cmdlet to bring up the log in dialog. Enter the Exchange server's administrator username and password. Note, you must have administrator rights to the server to use this.
    $LiveCred = Get-Credential
  2. Next, run this cmdlet:
    $Session = New-PSSession -ConfigurationName Microsoft.Exchange -ConnectionUri https://ps.outlook.com/powershell/ -Credential $LiveCred -Authentication Basic -AllowRedirection
  3. And then run this cmdlet:
    Import-PSSession $Session
  4. If you need to create the Public Folder Mailbox, you can create it using the console or using this cmdlet:
    New-Mailbox -PublicFolder -Name PFHierarchy
  5. When the Public Folder Mailbox exists, run these two cmdlets to create the Organizational Forms Library Public folder and set the LocaleID. Don't forget to change the EformsLocaleID if needed.
    New-PublicFolder -Path "\NON_IPM_SUBTREE\EFORMS REGISTRY" -Name "Organizational Forms Library"
    then
    Set-PublicFolder "\NON_IPM_SUBTREE\EFORMS REGISTRY\Organizational Forms Library" –EformsLocaleID EN-US

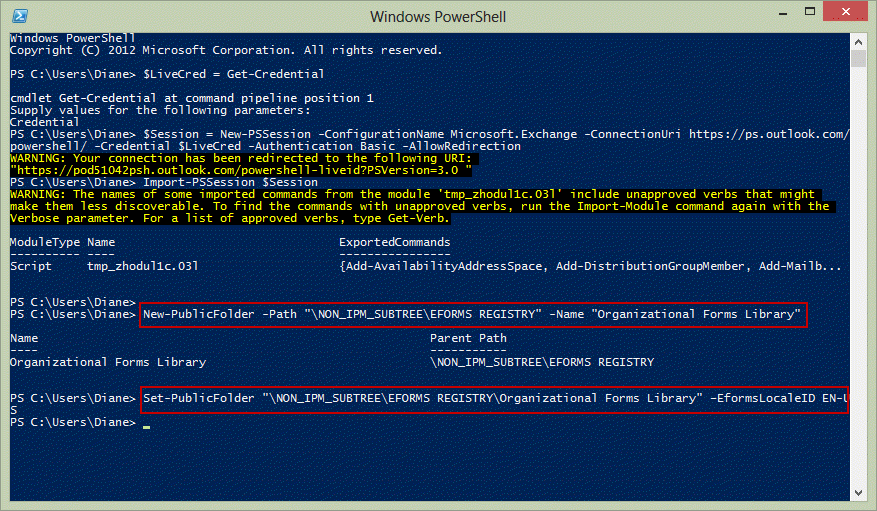

Use PowerShell to create the Organizational Forms library

If your Exchange server supports multiple languages, you can create one Org Library for each LocaleID. You'll need to use a unique name for each library.


Use or Publish forms

By default, users should have permission to the Organizational forms library, but if a user does not have permission to the folder, the administrator needs to give the person or group the necessary permission. This can be done using the Add-PublicFolderClientPermission cmdlet.

You can use a specific user's alias or email address, or use Default as the user to apply it to everyone.

In Office 365 Exchange Online, you'll need to assign Author permission or higher to use the forms library.

Add-PublicFolderClientPermission -identity "\NON_IPM_SUBTREE\EFORMS REGISTRY\Organizational Forms Library" -user maryc -AccessRights Author

In on-prem Exchange servers, users need at least Read  permission

Add-PublicFolderClientPermission -identity "\NON_IPM_SUBTREE\EFORMS REGISTRY\Organizational Forms Library" -user maryc -AccessRights ReadItems

To publish custom forms to the Organizational forms library, the user needs the correct permission as well.

In Office 365 Exchange Online, users will need Owner permission to publish forms.

Add-PublicFolderClientPermission -identity "\NON_IPM_SUBTREE\EFORMS REGISTRY\Organizational Forms Library" -user maryc -AccessRights Owner

In on-prem Exchange servers, users need at least CreateItems permission.

Add-PublicFolderClientPermission -identity "\NON_IPM_SUBTREE\EFORMS REGISTRY\Organizational Forms Library" -user maryc -AccessRights CreateItems

Outlook 2013 users will have access to the Organizational forms library but cannot publish to it using Publish custom forms. Outlook 2013 users can install *.FDM files.



To publish a form as an FDM file:

  1. First publish the form to Outlook Folders or Personal Forms Library.
  2. Open the Forms Manager dialog (File, Options, Advanced, Custom Forms, Manage Forms).
  3. Select the form and click Save as. (1 in screenshot)
    Save and install forms
  4. Click Set at the top right of the Forms Manager dialog and choose Organization Forms. (2)
  5. Click Install. (3)
  6. Browse to the location you saved the form (*.FDM), select Form Message (*.fdm) as the file type then select and open the saved form.

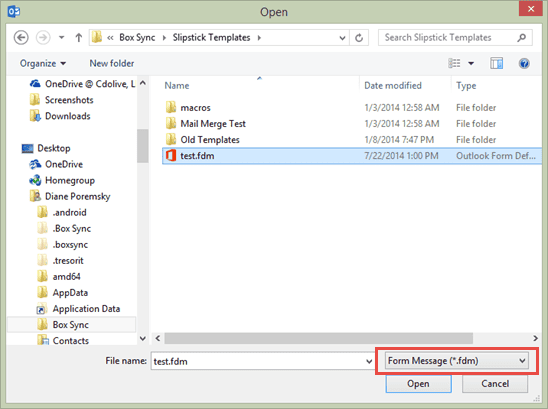

    select the form and click open
  7. The Form Properties dialog opens. Click Ok to install or fill in the properties then click Ok.
  8. Close the dialogs and return to Outlook.

Users will see the forms from the Organizational Forms Library.
Select the form from the org library



Using Published Forms

When you need to use a form published to the Organization Forms Library, you'll use the same method to use any published form: Select it from the New Items > More Items > Choose Form menu and browse to the Organizational Forms Library.

The form can be set as the default for a folder too.

  1. Right click on the folder, choose Properties
  2. On the General tab, click on When posting to this folder use:
  3. Select Forms: at the end of the menu.
  4. Select the Organizational Forms Library
  5. Select the desired form then click Open



Check, Change, or Remove Permissions

To check the permissions on the Organizational forms library, use this cmdlet:

Get-PublicFolderClientPermission -identity "\NON_IPM_SUBTREE\EFORMS REGISTRY\Organizational Forms Library"

If you need to change permissions, you'll need to first remove the user's permissions then give them new permissions:

Remove-PublicFolderClientPermission  -identity "\NON_IPM_SUBTREE\EFORMS REGISTRY\Organizational Forms Library" -user maryc
Add-PublicFolderClientPermission -identity "\NON_IPM_SUBTREE\EFORMS REGISTRY\Organizational Forms Library" -user maryc -AccessRights Author



Form Failed to Load error

Outlook 2010 and above caches the names of the forms in the Exchange Organizational Forms Library. The cache expires every 24 hours. If a new form in the Organizational Forms Library has not been cached, Outlook displays the error. The form is not cached in the Names File cache until the cache expires or times out.

form load failed dialog

To eliminate the error, lower the timeout or disable it. If using Outlook 2013, change 16 to 15 or, for Outlook 2010, change 16 to 14.

HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\Forms\ClassNamesCache

DWORD: Timeout
Decimal Value (in hours): 1 - 24

DWORD: Disabled
Value: 1

Do it for me

If you don't want to edit the registry, you can download and run the reg file for your version of Outlook.

Outlook 2016 Outlook 2013 Outlook 2010

More Information

Add-PublicFolderClientPermission (TechNet)

Discuss in our community
Create an Organizational Forms Library in Exchange or Office 365 was last modified: December 4th, 2018 by Diane Poremsky

Related Posts:

  • Organizational Forms Library in Exchange 2010
  • Create an Organizational Forms Library
  • Publishing Custom Forms
  • Tips for Customizing Outlook Appointment Forms

About Diane Poremsky

A Microsoft Outlook Most Valuable Professional (MVP) since 1999, Diane is the author of several books, including Outlook 2013 Absolute Beginners Book. She also created video training CDs and online training classes for Microsoft Outlook. You can find her helping people online in Outlook Forums as well as in the Microsoft Answers and TechNet forums.

15
Leave a Reply

2500
Photo and Image Files



Audio and Video Files



Other File Types



2500
Photo and Image Files



Audio and Video Files



Other File Types




  Subscribe
newest oldest most voted
Notify of
Brian Westbrook
Brian Westbrook

It wasn't working for me when adding myself as 'owner' on 'Organization Forms Library' eventually i discovered there was 'Organization Forms'. Once i set myself as owner on that I was able to copy the form from personal folder to Organization Forms in Outlook 2016. Install was greyed out before but now it's not.

Vote Up00Vote Down Reply
September 11, 2018 2:13 pm
Nick Anderson
Nick Anderson

I have a general question. Is it possible to have two different Organizational Forms Libraries? I ask cause our company is wanting to expand Outlook Forms and use some for appreciation and some for business needs. They would like to have a separate forms library for the appreciation forms. Is this possible?

Vote Up00Vote Down Reply
June 6, 2018 10:48 am
Diane Poremsky
Diane Poremsky

No, not separate libraries. The forms can be cateogized on the properties page, which may help keep them separated.

Vote Up00Vote Down Reply
June 6, 2018 11:48 pm
G_Elliott

I have developed custom contact forms for organizations, with custom fields, and command buttons that run VBscript code to create documents in Word. As organizations migrate to Exchange Online I will set up a shared folder and publish a custom form to that folder.
But how do I recreate the macros/automation? I've been told to use PowerShell, is that correct? Do you have other suggestions?
Thanks for any feedback!

Vote Up00Vote Down Reply
January 22, 2018 12:11 am
Diane Poremsky
Diane Poremsky

It'll work using office 365 the same way it works using on-prem. Only the location of the server changes.

You can't run macros using powershell - you will need to either have the code behind the form, or use VBA installed on desktops (preferably a com addin as its easier to push out an update).

Vote Up00Vote Down Reply
February 13, 2018 9:04 am
Donna
Donna

I created my custom form but I want the other users in the organization to seen. I try to publish it but when I select organizational library the OK Box is frayed out.

Do I need to request permission/ writes to saved to this library from the tech team? Exactly what should I ask them

Also I want my form to have a field that generates a random number this would be used as a ticket number for the users request. How do I do that?

Vote Up00Vote Down Reply
January 20, 2018 12:57 pm
Diane Poremsky
Diane Poremsky

You need owner permission to publish, users need author to use the form.
to generate a random code, you'll need to add a vb script to the form to generate it.

Vote Up00Vote Down Reply
January 20, 2018 9:46 pm
Kevin Treacher
Kevin Treacher

Hi in our oganisation we have recently upgraded Office 2007 running through Exchange 2007 to Office 2013 running through Exchange 2013. I have followed your steps above and have successfully created the "Organizational Forms Library" using the cmdlets provided on Exchange 2013. We have found our exisiting forms in .fdm format and saved to a central location. When going into Outlook 2013 (File, Options, Advanced, Custom Forms, Manage Forms) I can now see "Organizational Forms Library", although empty. When following the steps to save the form to it the Install button is greyed out? It comes back when selecting Personal Forms so I assumed this could be because i do not have create items permissions? but i have ran the cmdlet provided above to give myself create permissions and the permissions have now been set. When i go back onto Outlook 2013 (File, Options, Advanced, Custom Forms, Manage Forms) I can no longer see the "Organizational Forms Library" in the drop down list? Any ideas why this could be?

Vote Up00Vote Down Reply
March 31, 2015 12:27 pm
Brian
Brian

There is a bug in OUtlook 2013 that causes the Organizational Forms Library option to not be present in the drop down list when trying to use the Publish As option.

As a workaround, you can publish to your Personal Forms Library and then copy the form to the Organizational Forms Library. To copy the form, go to Options > Advanced, scroll down to the Developers section and click Custom Forms. On the pop-up, click Manage Forms. From there you can copy forms from your Personal Library to the Organizational Library. Assuming your permissions are already set, your users will then be able to see the form in the Organizational Forms Library.

Vote Up00Vote Down Reply
July 13, 2015 1:30 pm
John Parker
John Parker

Thanks very much Diane, the clues was there I just thought I would be able to do it autonomously. So effectively I need to go to every end point and install the .fdm into the library as per your instruction's.

Vote Up00Vote Down Reply
September 9, 2014 9:37 am
John Parker
John Parker

Hello Diane
How do I publish an organisational forms library from exchange 2010 to the clients which are Outlook 2013? the permissions are there but the cutome form will not show in public folders in outlook 2013

Vote Up10Vote Down Reply
September 8, 2014 10:06 am
Diane Poremsky

If you use Outlook 2013, you need to install it in the org library using fdm file, you can't publish it directly to the org library.

Vote Up00Vote Down Reply
September 8, 2014 4:37 pm
BenB
BenB

Is it possible to use this method with Office 365 (Exchange online) as well? We have a hybrid environment with Exchange 2010 on premise & Office 365. We are in the process of migrating our public folder to O365, but can't see if it's possible to migrate Organizational forms.

Vote Up00Vote Down Reply
July 18, 2014 2:20 pm
Diane Poremsky

You can create an org library in Office 365. I don't think it will replicate with the on-premise server, but I could be wrong, so you'll need to republish the forms.

Vote Up00Vote Down Reply
July 18, 2014 4:08 pm
BenB
BenB

Thanks for the quick reply! Replicating with on-premise isn't to much of an issue, it's only a few dozen, so we can re-publish them. As long as we can get them into O365 and available to users, eventually the on-premise servers will be decommissioned!

Vote Up00Vote Down Reply
July 18, 2014 8:06 pm
