Using and Editing the My Outlook Calendar Template

Last reviewed on January 18, 2013

My Outlook Calendar template is an excellent Word template that reads your Outlook calendar and creates a really nice calendar which you can doctor up with fancy fonts, colors or background images before printing. It can be sent to others as a Word document (or print it as a PDF before sending). You can even save it as HTML to upload to a web site. Several years ago (and possibly still) this calendar template was used on thousands of websites - it was easy to use and made a nicer looking HTML calendar than the old Outlook web calendar publisher (defunct as of Outlook 2003). I'm not sure this will ever be the idiot's guide Laurie wants but we're off to a good start.

The calendar template in question is the My Outlook Calendar template but many of the changes here may apply to the other calendar templates as all are based off of the same template.

The best news yet: it works in all versions of Outlook & Word to date: Office 97 - Office 2010. It should work in future versions that continue to support VBA.

Using the Template

Using the template is pretty straight-forward. Download the zip file, extract the template and double click it.

For best results (and because of tighter macro security), it should be in the default location for user templates. In Windows 7 this is C:\Users\username\AppData\Roaming\Microsoft\Templates\. If you run it from other folders, you may need to lower macro security settings.

When the template is in the Templates folder, you can open it from Word, using the File > New > My Templates dialog. Otherwise, double click to start it. Once open, you'll see a dialog with many options to select from.

My Outlook Calendar startup screen
In the top section you select the Outlook calendar you want to print and the format: monthly or weekly.

The tabbed lower section has many options, with the most popular ones enabled by default. Click each tab to see the options available.

After choosing the options you want to use, click OK and Word will create the calendar. It may take a few seconds if you have a lot of appointments or are making a calendar that spans several months.

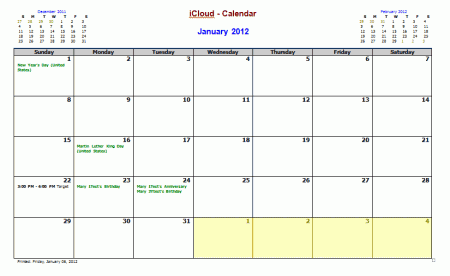

This is the finished result:

A calendar using the default options

Customize the Calendar

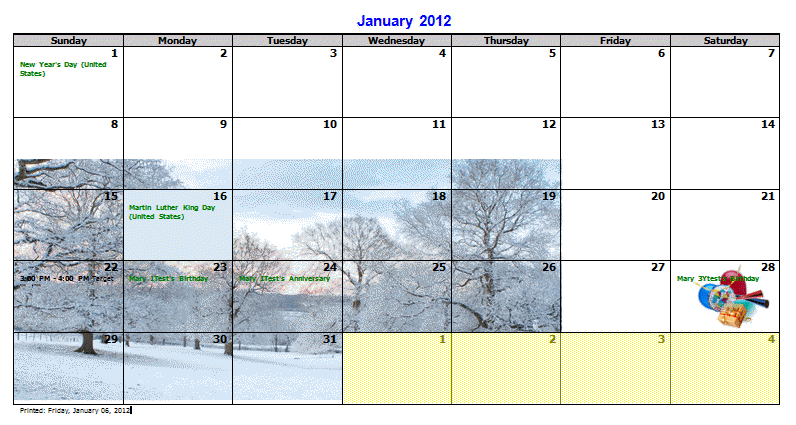

Before printing the calendar you can use Word's tools to highlight appointments or dates or to decorate the calendar.

Need color in one cell? Use Cell Shading.

Want to add a image to the calendar or a date? You can quickly insert an image then use the Wrap text command to send it behind text. However, for best results, insert the image and select it. On the Picture format ribbon you'll expand the Position command and choose More layout options from the bottom. On the Text wrapping tab, set the image to be In front of text (for now), then on the Position tab, deselect Layout in table cell. Close the dialog. Drag to position on the page and resize as desired, then send behind the text (Wrap text command).

Customize the calendar before printing

Editing the Template

Since Laurie started this, we'll begin with the features she wants to change:

I've had a bash at editing it in VBA via Word, but the options to edit seem limited: I have managed to tell it NOT to print my name at the top, but not managed to remove the two mini calendars for last and next month at the top. Nor to change the font for the printed date. Nor change the grid size. Etc etc...

The options usually persistent once changed, but if you want to change the defaults or even hardcode certain settings, you can edit the code.

  1. First, open the template as a template. Don't double click on it, right click on the *.dot file and choose Open. It should open to a white page and the title bar should say 'my outlook calendar.dot'.
  2. Next, press Alt+F11 to open the VB editor
  3. On the left, expand Forms folder and right click on the little form icon labeled "MY" then choose View Code.
  4. Now you can make your changes to the code and save.

The default options are set in this section of code. (I searched for 'thumbnail' to find it quickly). I changed the default for the thumbnail calendars and the calendar name so both are off. This sets my preferred defaults while allowing me to use them if I want to.

chkPrintWeekends.Value = GetSetting(Application.Name, strKey, chkPrintWeekends.Caption, "True")
chkLeftToRight.Value = GetSetting(Application.Name, strKey, chkLeftToRight.Caption, "False")
chkShowMeetingAttendees.Value = GetSetting(Application.Name, strKey, chkShowMeetingAttendees.Caption, "False")
chkShowApptEnd.Value = GetSetting(Application.Name, strKey, chkShowApptEnd.Caption, "True")
chkThumbnails.Value = GetSetting(Application.Name, strKey, chkThumbnails.Caption, "False")
txtNumberMonths.Text = GetSetting(Application.Name, strKey, "Number Months", "1")
txtNumberWeeks.Text = GetSetting(Application.Name, strKey, "Number Weeks", "1")
txtOtherTitle.Text = GetSetting(Application.Name, strKey, lblOtherTitles.Caption, "")
chkUserName.Value = GetSetting(Application.Name, strKey, chkUserName.Caption, "0")
txtDateFormat.Text = GetSetting(Application.Name, cTemplate, "Date Format", "m/d")
txtHourFormat.Text = GetSetting(Application.Name, cTemplate, "Hour Format", "h:mm AMPM")
txtApptFontSize.Text = GetSetting(Application.Name, strKey, "Text Font Size", Application.Selection.Font.Size)
mpCalendarType.Value = GetSetting(Application.Name, strKey, "Visible Tab", "1")

Written by

Diane Poremsky
A Microsoft Outlook Most Valuable Professional (MVP) since 1999, Diane is the author of several books, including Outlook 2013 Absolute Beginners Book. She also created video training CDs and online training classes for Microsoft Outlook. You can find her helping people online in Outlook Forums as well as in the Microsoft Answers and TechNet forums.

4 responses to “Using and Editing the My Outlook Calendar Template”

  1. Laurie

    Hi there. Thanks for persevering with this.

    Some problems.

    1. The readme says "Olcalndr.exe contains a sample Microsoft Word 97 template for use with

    Microsoft Outlook 97 and Outlook 98". I have Outlook 2003.

    2. I don't have a C:UsersusernameAppDataRoamingMicrosoftTemplates folder.

    On the other hand, I _have_ got C:Program FilesMicrosoft OfficeTemplates which contains fax templates etc.

    3. "First, open the template as a template. Don't double click on it, right click on the *.dot file and choose Open. It should open to a white page and the title bar should say 'my outlook calendar.dot'."

    Nope. The title bar says 'OlCalndr'. I have the file on the desktop and macro security set to low.

    I think I'll give up now. Life is too short. Thanks for trying to help me though.

  2. Edward

    Hi, Diane,
    What's the license on this? Can i modify the VB code further and use it within my company? I would leave the copyright notice within the code but would like to hide the "About" tab. Is this possible?
